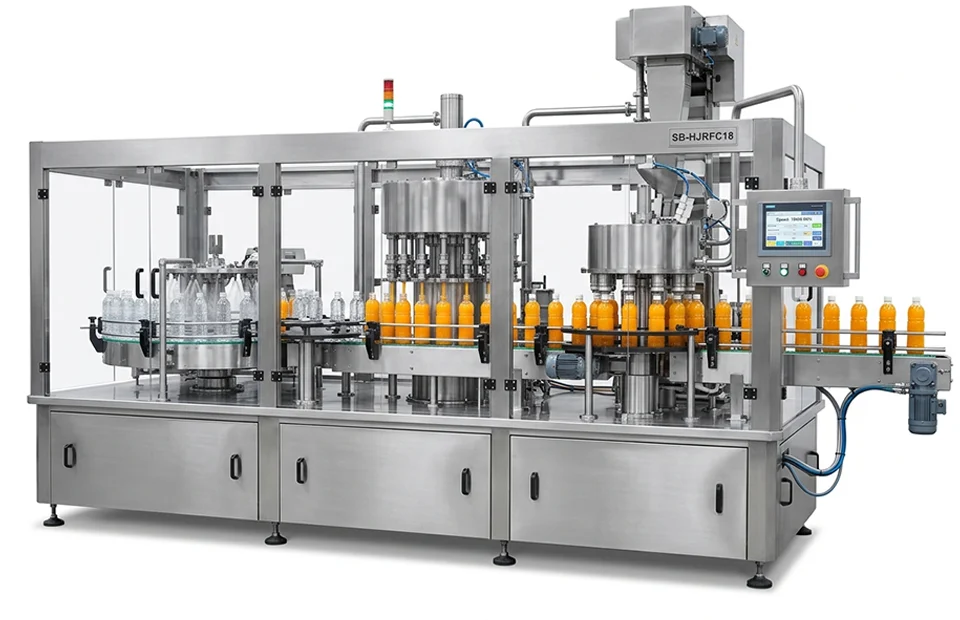

Automatic Hot Juice Rinsing Filling Capping Machine

Automatic Hot Juice Rinsing Filling Capping Machine

The Automatic Hot Juice Rinsing Filling Capping Machine is designed for rinsing, hot juice filling, and capping operations in a single integrated system. It ensures hygienic processing, accurate filling, and secure sealing for juice and beverage production lines. Its fully automatic operation delivers continuous production with high efficiency, reduced manpower, and reliable packaging performance.

Speed Up to 18,000 BPH
Bottle Size 200 ml to 2 Liter
Accuracy ±1%
Power Consumption 3 HP to 6 HP

Technical Specifications

Machine Information
Model No SB-HJRFC18
Machine Type Hot Juice Rinsing Filling Capping Machine
Bottle Type PET / Plastic Bottles
Automation Fully Automatic
Process System
Rinsing System Rotary Bottle Rinsing System
Filling System Hot Filling System
Capping System Automatic Cap Sealing
Control System PLC Control Panel
Electrical
Material SS 304 / SS 316
Power Source Electric
Voltage 220 / 380 / 410V
Phase 3 Phase

Features

Integrated rinsing, filling & capping system
High-speed bottle processing operation
Accurate and hygienic hot juice filling
PLC controlled fully automatic system
Smooth and continuous production flow
Low maintenance and efficient design

Applications

Juice Processing Plants
Beverage Packaging Industry
Fruit Juice Bottling Units
Soft Drink Industry
Food & Beverage Plants
Liquid Packaging Lines

Ready for your optimized packaging solution?

FAQs

1. What does an Automatic Hot Juice Rinsing Filling Capping Machine do?

An Automatic Hot Juice Rinsing Filling Capping Machine combines bottle rinsing, hot juice filling and capping operations within an integrated bottling process.

2. What applications can the Hot Juice RFC Machine handle?

The machine is designed for hot-fill juice bottling applications and can be configured for compatible bottle formats, closure types and production requirements.

3. How does SB Machines select the right Hot Juice RFC Machine?

SB Machines considers factors such as juice characteristics, bottle type and size, hot-fill requirements, closure type and required production output to determine a suitable machine configuration.

4. Can SB Machines integrate it with a complete juice bottling line?

Yes. SB Machines can integrate the Hot Juice RFC Machine with compatible bottle handling, labelling and packaging equipment based on complete juice bottling-line requirements.
