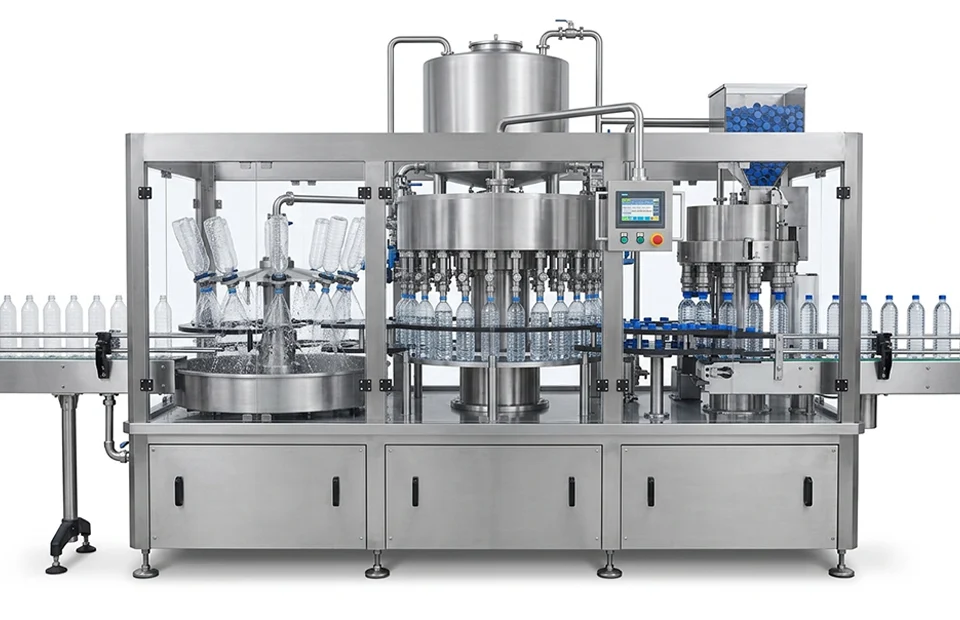

Automatic Combi-Block Rinsing, Filling and Capping Machine

Automatic Combi-Block Rinsing, Filling and Capping Machine

The Automatic Combi-Block Rinsing, Filling and Capping Machine is an advanced integrated packaging solution designed for rinsing, filling, and capping operations in a single compact monoblock system. It enables continuous high-speed production with hygienic processing, precise filling accuracy, and reliable capping performance. Its space-saving design eliminates the need for multiple standalone machines, reduces manual handling, and improves overall production efficiency. The system is widely used in water, beverage, pharmaceutical, edible oil, and liquid packaging industries.

Speed Up to 24,000 BPH
Bottle Size 50 ml to 5 Liter
Accuracy ±1%
Power Consumption 3 HP to 10 HP

Technical Specifications

Machine Information
Model No SB-CBRFC24
Machine Type Automatic Combi-Block Machine
Bottle Type PET / Glass Bottles
Automation Fully Automatic
Process System
Process Type Rinsing, Filling & Capping
Design Compact Rotary Monoblock System
Filling System Gravity / Volumetric Filling
Capping System Automatic Screw / ROPP Capping
Electrical
Material SS 304 / SS 316
Power Source Electric
Voltage 220 / 380 / 410V
Phase 3 Phase

Features

Integrated rinsing, filling & capping system
Compact monoblock space-saving design
High-speed synchronized bottle handling system
Accurate and consistent filling performance
Automatic cap feeding and sealing system
PLC controlled fully automatic operation

Applications

Mineral Water Bottling Plants
Packaged Drinking Water Industry
Beverage & Juice Packaging Units
Pharmaceutical Liquid Packaging
Edible Oil Filling Plants
Wine & Liquor Bottling Plants

Ready for your optimized packaging solution?

FAQs

1. What does an Automatic Combi-Block Rinsing, Filling and Capping Machine do?

An Automatic Combi-Block Machine combines bottle rinsing, liquid filling and capping within a single rotary monoblock system for an integrated bottling process.

2. What bottles and applications can the Combi-Block Machine handle?

The machine supports compatible PET and glass bottles for applications including packaged drinking water, beverages, juice and other suitable liquid products based on production requirements.

3. How does SB Machines select the right Combi-Block configuration?

SB Machines considers factors such as liquid product, bottle type and size, closure requirements, filling method and required production output to determine a suitable machine configuration.

4. Can SB Machines integrate the Combi-Block with a complete bottling line?

Yes. SB Machines can integrate the Combi-Block with compatible bottle handling, labelling and packaging equipment based on complete bottling-line requirements.
