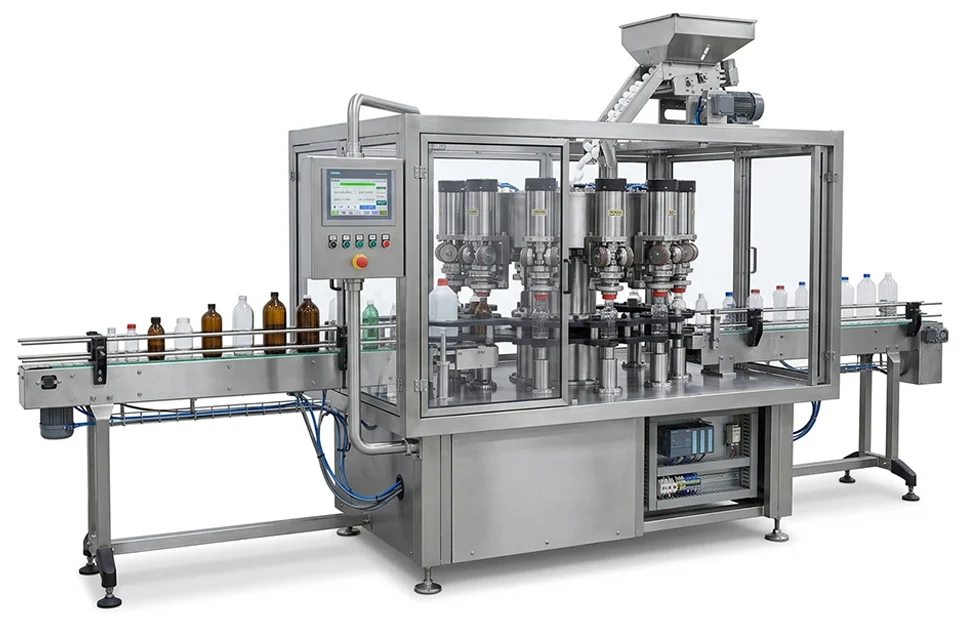

Automatic Eight Head Screw/ROPP Capping Machine

Automatic Eight Head Screw/ROPP Capping Machine

The Automatic Eight Head Screw/ROPP Capping Machine is designed for high-speed bottle sealing with precise screw and ROPP cap application. The eight-head rotary system ensures smooth bottle handling, accurate cap tightening, and continuous production efficiency. It is suitable for modern packaging lines requiring reliable and fully automatic capping operations.

Speed Up to 180 BPM
Bottle Size 50 ml to 5 Liter
Accuracy Up to 99%
Power Consumption 3 HP to 5 HP

Technical Specifications

Machine Information
Model No SB-EC180
Machine Type Eight Head Screw / ROPP Capping Machine
Bottle Type PET / Plastic / Glass Bottles
Automation Fully Automatic
Process System
Capping System Eight Head Screw / ROPP Capping System
Operation Automatic Bottle Capping
Cap Feeding Automatic Cap Feeding System
Control System PLC & HMI Control
Electrical
Material SS 304
Power Source Electric
Voltage 220 / 380 / 410V
Phase 3 Phase

Features

Eight head rotary high-speed capping system
Screw & ROPP cap compatibility
Accurate and secure cap tightening
Smooth rotary bottle handling mechanism
PLC & HMI controlled automatic operation
Continuous and efficient production output

Applications

Beverage Packaging Industry
Pharmaceutical Packaging
Edible Oil Bottling
Chemical Packaging Plants
Cosmetic Packaging Lines
Food Processing Industry

Ready for your optimized packaging solution?

FAQs

1. What does an Automatic Eight Head Screw/ROPP Capping Machine do?

An Automatic Eight Head Screw/ROPP Capping Machine uses eight capping heads to apply and secure compatible screw or ROPP caps onto bottles during an automated capping process.

2. What caps can the Eight Head Capping Machine handle?

The machine can be configured for compatible screw and ROPP closures based on cap specifications, bottle format, capping requirements and required production output.

3. How does SB Machines select the right Eight Head Capping Machine?

SB Machines considers factors such as bottle type and size, cap type and dimensions, closure requirements and production output to determine a suitable machine configuration.

4. Can SB Machines integrate it with a complete bottling line?

Yes. SB Machines can integrate the Eight Head Screw/ROPP Capping Machine with compatible filling, labelling and packaging equipment based on production-line requirements.
